Vacuum drying in battery cell production

Process-safe solutions for efficient e-mobility

Drying electrodes gently and safely with vacuum dryers from weisstechnik

Vacuum drying technology is indispensable in the production of lithium-ion batteries. We design customer-specific vacuum dryers that can be integrated into production lines and research facilities as required. Our vacuum dryers work extremely efficiently and with optimised processes.

Interview with the expert

Katharina Mayer

Application Manager E-Mobility

What advantages does vacuum technology offer in drying processes?
Reduced air pressure also reduces the boiling point of liquid mixtures according to the vapour pressure-temperature curve. These then evaporate at significantly lower temperatures and can be actively sucked out of a receiving vessel. Therefore, sensitive products do not need to be heated as much in a vacuum to achieve the same drying performance. All of the trapped air and vapour in the product is removed and re-condensation after the drying process is reliably prevented. This makes vacuum drying the perfect solution wherever moisture has to be removed from sensitive materials gently, without leaving residues and in a manner that is process-safe.

How can vacuum drying be used in battery production?
Vacuum drying is the final step in electrode production. To ensure that the batteries offer the required performance and longevity, the coated coils must be dried in the best possible way. Even the smallest residues of moisture and solvents are removed from them in the process. Vacuum dryers with circulating air temperature control perform this process particularly efficiently. After complete drying, the coils are transferred to cell assembly, where they are further processed under controlled drying room conditions - for example, dew point - 60°C.

How does vacuum drying optimise the production of lithium-ion batteries?
Currently, there are no established or standardised processes for vacuum drying in battery manufacturing. That's why it's exciting to be involved in research production and to help develop these standards. We do this with our customer specific and process-optimised vacuum drying solutions for efficient and safe battery production. We integrate these into the production line as required. Since flammable solvents are used in electrode production, process safety is a particularly important aspect. To ensure this, we use our in-depth experience in thermal engineering.

Innovative battery cell production

Weiss Technik Heat Technology supplies vacuum drying system for Fraunhofer Research Institution for Battery Cell Production (FFB)

As climate change progresses and fossil fuels are being depleted, the demand for alternative energy sources for electric vehicles, PV systems, and other private and commercial applications is increasing. Battery cell production is thus becoming a key technology for the energy and mobility transition.

Ecological and economical battery cell production on a large scale is still being established in Germany. In order to optimise the production of lithium-ion batteries, the Fraunhofer Society is establishing the Fraunhofer Research Institution for Battery Cell Production (FFB) in Münster together with its local partners. The experience gained from this research production will enable companies to develop their own production technologies more quickly and efficiently.

Lithium-ion batteries and other sustainable energy storage devices are highly temperature-sensitive during manufacture. They are therefore produced in drying rooms and post-dried in vacuum dryers. This minimises residual moisture and thus ensures product quality and reliability. Our Heat Technology business division won an international tender and is developing and supplying the corresponding vacuum drying system with exhaust air treatment for the post-drying of electrode coils for the Gigafab expansion stage of the Fraunhofer FFB in Münster.

Faster safe drying
Optimise process times

Short process times are important in industrial battery production. In order to dehumidify the temperature-sensitive battery electrodes completely and safely as quickly as possible, we recommend particularly gentle hybrid drying systems with circulating air temperature control. The fast process with a short heating time achieves optimal drying results while eliminating air pockets in the electrodes. This is crucial for the performance of the batteries.

Flexible integration in research and production
Customised batch and continuous ovens

Depending on the application and process, we develop vacuum drying solutions that fit seamlessly into the battery production line: customised batch furnaces with tailor-made coil fixtures or continuous furnaces integrated into production lines for high production capacities. Our vacuum dryers are suitable for both research projects and industrial battery production.

Everything under control
Reliable quality through consistent manufacturing conditions

For high battery quality, the entire manufacturing process must take place under controlled, dry environmental conditions. A crucial point here is the connection between the individual production steps. Vacuum dryers can be used as an airlock for the electrodes between the different drying rooms. Passing the coils through the airlock ensures that the low dew points of -40 to -60 ºC are not interrupted.

Everything from one source
Solutions for the production of lithium-ion batteries

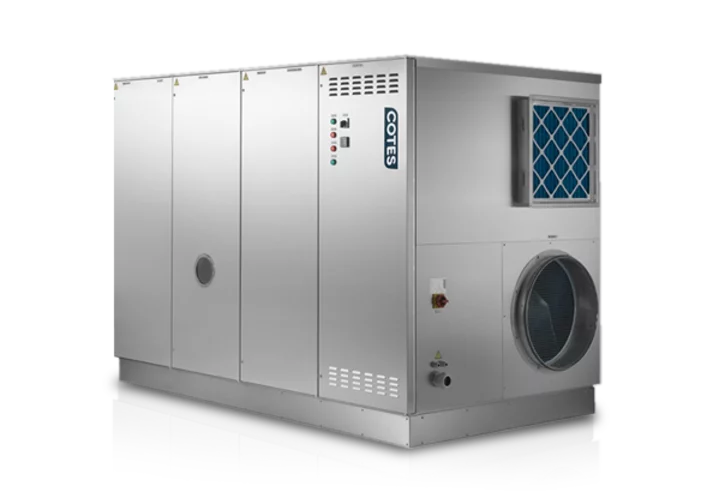

As part of the Schunk Group, we offer experience, expertise and diverse solutions for the production of lithium-ion batteries. These include innovative and flexibly applicable ultrasonic welding solutions from Schunk Sonosystems, adsorption dryers from Weiss Klimatechnik for reliably low dew points and a wide variety of environmental simulation solutions for testing batteries under a wide range of conditions.

Contact us!

Send Email

If you would like to find out more about our vacuum drying solutions for your lithium-ion battery production, we would be happy to offer you one-on-one advice and develop a customised solution to meet your requirements.
