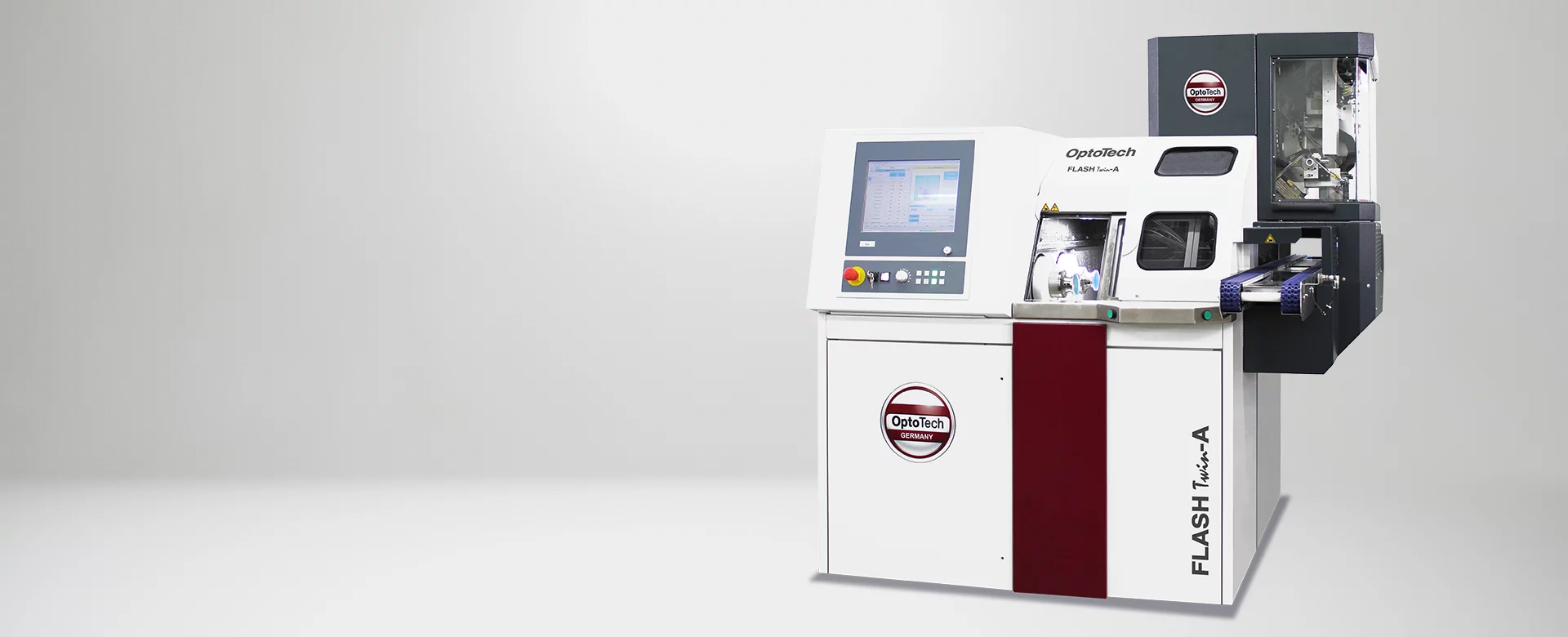

FLASH Twin-A
The new digital surfacing-turning machine FLASH Twin-A is an enhancement of our tried and tested FLASH series. Due to the usage of 2 Fast-Tools, the FLASH Twin-A is able to simultaneously process 2 freeform lenses. Considerably increased speed of the tool spindles, combined with a high-class precision ball bearing, leads to significant improvements in quality and quantity. It is the ideal complement to our ESM Twin-A.
Spectacle optics
Generating
Automation
Plastic
Close
Video
Contact request
Highlights
- Due to the usage of 2 Fasttools, the FLASH Twin-A is able to simultaneously process 2 freeform lenses
- Considerably increased speed of the tool spindles, combined with a high precision ball bearing for the workpiece spindles, leads to significant improvements in quality and quantity
- A high dynamic drive concept combined with an ultrafast computer controller enable highest precision in freeform surfacing within shortest processing times
- For processing backsideprogressive, atoric, individual, front progressive and standard toric surfaces
- Optimized automatic loading system
- Lowest vibration due to OptoTech async mode
- Machine base made of rigid mineral cast
- Fast-Tool highspeed linear drive
- Ideal combination with ESM Twin-A
Process characteristics
- Cut-to-polish (spherical, torical or a-torical): approx. 120 surfaces/h
- Cut-to-polish (freeform): approx. 120 surfaces/h
Options
- Coolant tank
- Barcode hand scanner
- Remote diagnosis
- LAN connection
